Full Height Turnstile

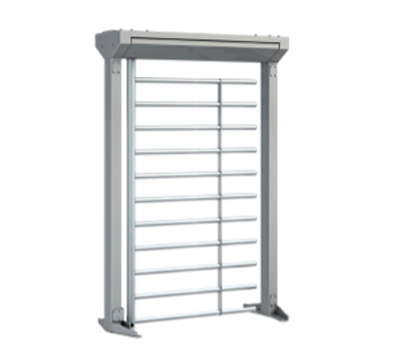

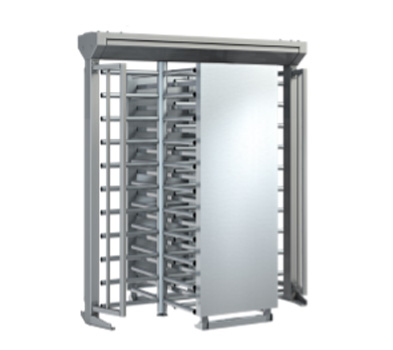

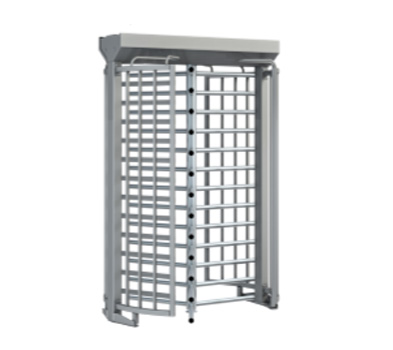

Full Height Turnstile Overview

Full Height turnstile are especially designed for reliably securing outdoor areas and for places where high security is required, normally it is used to realize unsupervised accessing management. The body is made from AISI 304 grade stainless steel which have double brushed surface treatment to make robust, rigid, dust proof, rust proof and rain proof barrier/gates. We have redesigned the barriers/gates with great importance to aesthetics and comfort which creates a seamless and elegant access point to blend into most outdoor environment of any premises.

It can easily be integrated with any kind of Access Control system (i.e. RFID device, Fingerprint, Biometric device and Push button). In case of emergency, the arm will be free automatically to allow free passage ensuring Fire Safety norms.

Thanks to its patented locking technology, it is impossible for anyone to become trapped in the event of power failure or attempted unauthorized access. The access through put from the barrier/gate is 30 persons/minute.

We have unidirectional, bidirectional, single lane, dual lane and customizable lanes to suit Customer requirements. They are purely suitable And are optimized for indoor/outdoor premises Like:- military establishment, nuclear plants, factory, industrial plant, bank and etc.

It’s Mechanical design and durable steel construction ensures its operation in high-intensity & relatively harsh/poor environment to control the accessing safely and effectively.

To further strengthen the quality and reliability, our products comes with International Standards i.e: UL/CE/FCC/ROHS Certifications.

Product Range - Full Height Turnstile

FULLY SECURED GATES

Full Height Turnstile are utmost secured entrances designed for harsh conditions to any premises, usually used for slow pedestrian traffic flow in the both directions.
Vertical Solutions

Value Added Solutions for Full Height Turnstile

For over 20 yrs of experience, provides Turnstile/Barrier with wide range of add-on solutions to cater multiple Industry-specific requirements for Safe and Secure entrances.

ESD System

It tests Electrostatic current on wrist band/footwear while entering the premises


Random Frisking

A module which stops to frisk persons randomly while entry/exit


People Counting

It help us to know how many persons are in the premises at the moment

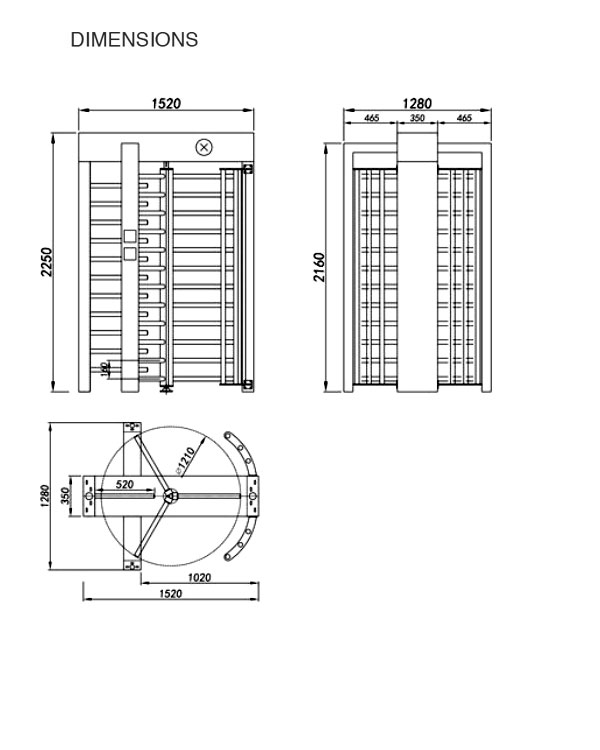

Technical Specifications

Our Technical Specification are as per the Industry standard Includes dimensions, functionality, material, interface, working, protection, approvals etc.

Below you will find the detailed technical specification of Full Height Turnstile.


  • Frame Work: 316/304 Stainless Steel
  • Arm Material: SS Bars
  • Passage Width: ≤ 550mm
  • Single Lane Dimension: 1600mm x 1500mm x 2300mm
  • Dual Lane Dimension: 2300mm x 1450mm x 2300mm
  • Pass Speed: 30 persons/minute
  • Passing Direction: Unidirectional/Bidirectional
  • Lane LED Indicator: Yes
  • Working Environment: IP 65/43 protection conformity
  • Approvals: UL/CE/FCC/ROHS
  • Fire Emergency: Free Rotation of ARM on Fire Input
  • Operation Temperature: -15°C to -60°C
  • Power Supply: AC 220V, 50/60HZ

Applications

Flap Barrier offers Automatic Flap Barriers System Speed Gates, Tripod Turnstiles Barrier Gates, Swing & High Speed Barriers Gates, Half Height Turnstile Barriers, Automated P Gate, Revolving & Security Doors Gates in Gurgaon (Gurugram) Delhi Noida
