Integrating Flap Barriers with Biometric Systems: A Step-by-Step Guide

Introduction

Integrating flap barriers with biometric systems (face recognition, fingerprint, mobile credentials and RFID) delivers secure, touchless access while providing audit trails for compliance and incident review. A successful integration depends on protocol compatibility, correct wiring and power planning, clear enrollment processes, and rigorous testing. This guide walks system integrators and facility teams through protocol selection, wiring, device configuration, enrollment best practices, testing, and troubleshooting to ensure reliable operation in commercial environments.

Integration overview & common protocols

Choose a communication model that matches vendor support and your operational needs. Common interfaces include:

• Wiegand: Simple, widely supported for card and many biometric readers. Sends ID/authorization with low latency but limited bandwidth.
• RS485 / RS232: Serial connections used by some devices for device-level commands and multi-drop networks.
• TCP/IP (HTTP/HTTPS, WebSocket, SDK/API): Modern biometric devices support IP for richer data exchange, central management, and remote enrollment.

Tip: prefer IP-capable readers for analytics and cloud features; prefer Wiegand/relay for offline resilience and lowest latency.

Step 1 — Plan the integration

• Map lanes, reader mounting (pedestal or sidewall), and cable routes to the power/network cabinet.
• Decide validation location: local reader (reader→controller) for low latency/offline, or server-side for centralized policies and logging.
• Define security rules: anti-passback, tailgating detection, multi-factor requirements and emergency behaviors (fail-safe vs fail-secure).
• Plan caching/sync strategies for high-availability: cached allow-lists or edge-hybrid models.

Step 2 — Wiring & power considerations

Proper cabling prevents intermittent failures and reduces maintenance calls:

• Power: Many biometric readers need 12VDC or 5VDC; some support PoE. Use dedicated PSU or PoE switch per vendor guidelines.
• Data cabling: Use shielded CAT6 for TCP/IP. For Wiegand use twisted-pair and keep runs short where possible.
• Grounding: Maintain a single common earth to minimize ground-loop noise and communication errors.
• Surge protection: Add surge arrestors on power and network feeds in electrically noisy environments.

Step 3 — Configure the reader & flap controller

• Set Wiegand bit format (e.g., 26-bit) or RS485 addresses according to documentation.
• Map reader outputs (relay or Wiegand) to the controller trigger inputs and define open duration and pre-alarm delays.
• For IP readers, configure server addresses, callback endpoints, and NTP for consistent timestamps.
• Enable logging and set retention rules so audit trails are available when needed.

Step 4 — Enrollment & credential management

Enrollment quality is critical for biometric accuracy and user satisfaction:

• Confirm template format compatibility between reader and backend.
• Follow vendor best practices: capture multiple face angles, ensure even lighting for face recognition, and capture multiple impressions per finger for fingerprint readers.
• Organize users into access groups and set schedules; use multi-factor (face + PIN) for sensitive areas.
• Document enrollment workflows so administrators follow consistent procedures across sites.

Step 5 — Testing & validation

Test thoroughly before go-live:

• Functional tests: valid passage, denied attempts, and proper logging of events.
• Safety tests: obstruction detection and emergency open/close behaviors.
• Performance tests: measure capture-to-open latency — aim for under 1 second for smooth pedestrian flow.
• Edge tests: network outages, power failure handling, and concurrent user attempts.

Common integration patterns

• Local validation: Reader directly triggers the flap (relay/Wiegand). Pros: low latency and offline operation.
• Server-side validation: Reader sends biometric data to a backend; backend validates and commands controller. Pros: centralized policies and richer logging; cons: network dependency.
• Edge-hybrid: Reader caches allow-lists locally and syncs with backend — balance of resilience and central control.

Troubleshooting tips

• Communication drops: check cable shielding, replace damaged cabling, and verify switch port settings (disable aggressive power saving).
• False rejections: improve camera placement and lighting, re-enroll users at better angles, and verify template quality thresholds.
• Tailgating: tune photocell zones, enable anti-tailgating logic, and consider analytics that detect multiple faces/people in the authentication window.
• Time sync issues: enable NTP on readers/controllers/backend to keep logs aligned.

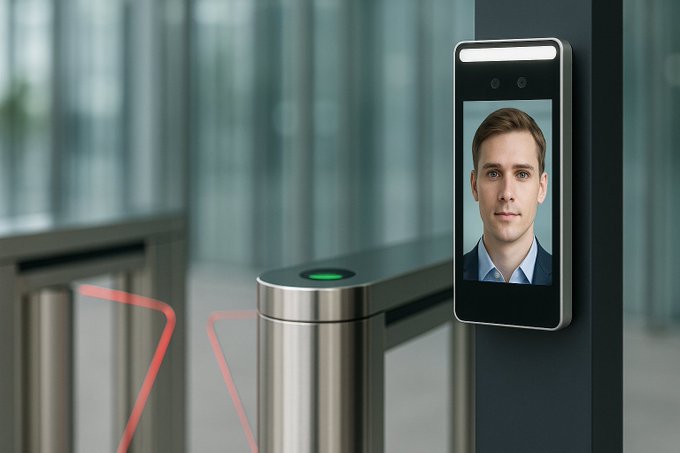

Example flow — Face recognition + flap barrier

1) User approaches; camera captures face and matches locally or via server. 2) On “Authorized”, the reader sends a relay/Wiegand or API open command to the flap controller. 3) Flap opens for configured time while photocells monitor single-person passage. 4) On tailgate detection, controller triggers alarm and logs the event.

Final checklist before go-live

Conclusion

A well-planned biometric integration improves security and user experience. Select protocols based on availability and features, favor IP readers for future-proofing if your network is reliable, perform thorough enrollment and testing, and keep templates and firmware updated for ongoing reliability.
