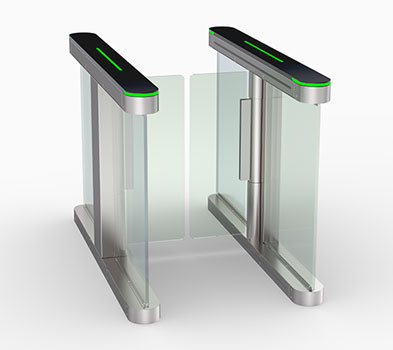

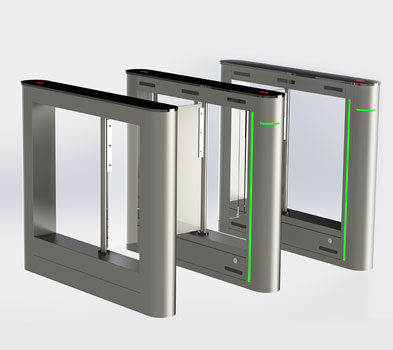

High Speed Swing Barrier Gate

High Speed Swing Barrier Gate

High Speed Barrier Gate ( Swing Barrier Gate Suppliers India) are designed to control pedestrians entering or exiting restricted areas, usually used in high pedestrian traffic flow in both directions. The body is made from AISI 304 grade stainless steel which have double brushed surface treatment to make robust, rigid, dust proof, rust proof and rain proof barrier/gates. We have redesigned the barriers/gates with great importance to aesthetics and comfort which creates a seamless and elegant access point to blend into most indoor environment of any premises.

It can easily be integrated with any kind of Access Control system (i.e. RFID device, Fingerprint, Biometric device and Push button), Time Attendance system or Ticketing solutions. In case of emergency, the arm will open automatically to allow free passage ensuring Fire Safety norms.

Thanks to its patented locking technology, it is impossible for anyone to become trapped in the event of power failure or attempted unauthorized access. The access through put from the barrier/gate is 30 persons/minute.

We have unidirectional, bidirectional, single lane, dual lane and customizable lanes to suit Customer requirements. They are purely suitable And are optimized for indoor/outdoor premises Like:- railway, bus station, factory, colleges, commercial building, corporate offices, library, stadium, game park, bank and etc.

It’s Mechanical design and durable steel construction ensures its operation in high-intensity & relatively harsh/poor environment to control the accessing safely and effectively.

To further strengthen the quality and reliability, our products comes with International Standards i.e: UL/CE/FCC/ROHS Certifications.

Product Range - High Speed Swing Barrier Gate

HIGH SPEED, AESTHETICAL and FULLY AUTOMATIC

High Speed Barrier are designed for speedy entrance with an elegant finishes to suit the interiors of any premises, usually used in high pedestrian traffic flow in both the directions.
High Speed Swing Barrier Gates
Vertical Solutions

Value Added Solutions for High Speed Swing Barrier

For over 20 yrs of experience, provides Turnstile/Barrier with wide range of add-on solutions to cater multiple Industry-specific requirements for Safe and Secure entrances.
High Speed Gates Swing Barrier, swing gate, speed gate, swing barrier, high speed gate

ESD System

It tests Electrostatic current on wrist band/footwear while entering the premises

High Speed Swing Barrier Gates, swing gate, speed gate, swing barrier, high speed gate

Random Frisking

A module which stops to frisk persons randomly while entry/exit

High Speed Gates Swing Barrier, swing gate, speed gate, swing barrier, high speed gate

People Counting

It help us to know how many persons are in the premises at the moment

High Speed Swing Barrier Gates, swing gate, speed gate, swing barrier, high speed gate

Safety Sensor protection module

This module protects safety sensor to be misused by any one

High Speed Gates Swing Barrier, swing gate, speed gate, swing barrier, high speed gate

Tailgate 3D detector

Is an module, that ensures only authorized person can enter to a secured area

High Speed Swing Barrier Gates, swing gate, speed gate, swing barrier, high speed gate

Free Passage module

This will enhance the pass speed & reduces system maintenance cost

High Speed Gates
Technical Specifications

High Speed Gates Technical Specification are as per the Industry standard Includes dimensions, functionality, material, interface, working, protection, approvals etc.

Below you will find the detailed technical specification of High Speed Barrier Gates


  • Frame Work: 316/304 Stainless Steel
  • Arm Material: Toughened/Acrylic Glass
  • Passage Width: < 550mm - 900mm

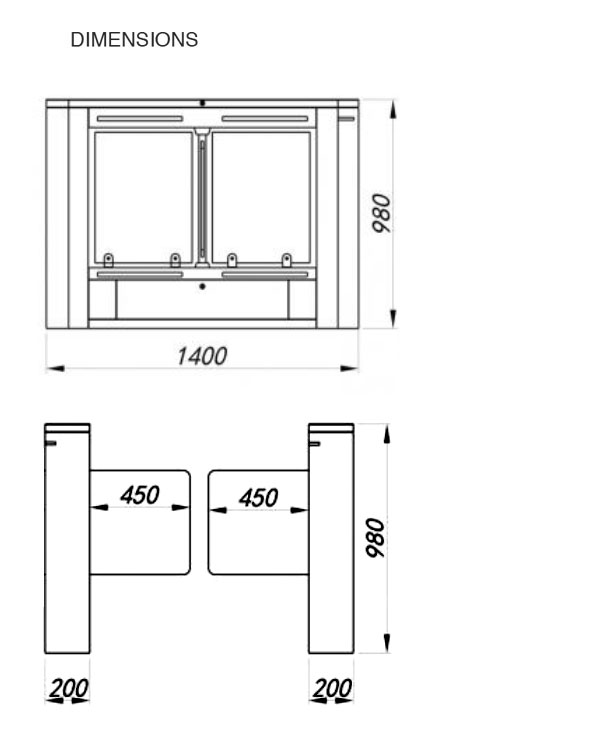

  • Single Lane Dimension: 1200mm x 180mm x 980mm
  • Pass Speed: 40 persons/minute
  • Passing Direction: Unidirectional/Bidirectional
  • Lane LED Indicator: Yes
  • Working Environment: IP 65/43 protection conformity
  • Approvals: UL/CE/FCC/ROHS
  • Fire Emergency: Opening or Closing of ARM on Fire Input
  • Operation Temperature: -15°C to -60°C
  • Power Supply: AC 220V, 50/60HZ

Applications

Swing Barrier offers Automatic Flap Barriers Speed Gates, Tripod Turnstiles Barrier Gates, Swing & High Speed Barriers Gates, Half Height Turnstile Barriers, Automated P Gate, Revolving & Security Doors Gates in Mumbai, Bangalore, Pune, Hyderabad, Gurgaon Manesar Delhi Noida All India
